Flake Ice Machine 3T/24h

  1. Flake Ice Machine 3Ton Per Day

  2. Fresh Water /Salt Water

  3. Air Cooling/Water Cooling

  4. Flake Ice Thickness:  1.5-2.2mm

  5. Refrigerant:  R22/R404A

  6. With PLC Controller

Product Details:

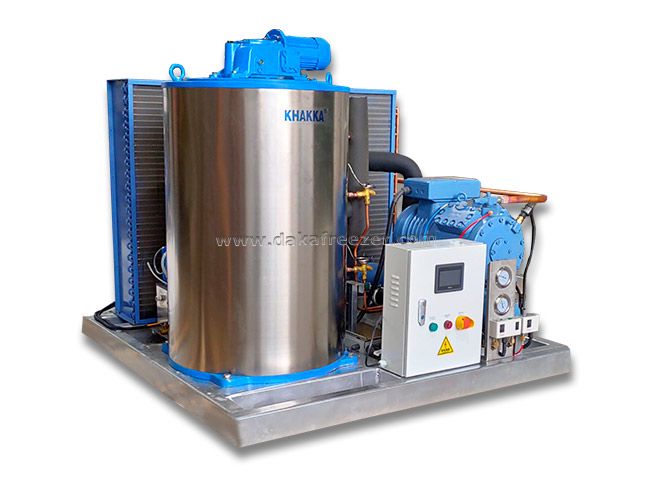

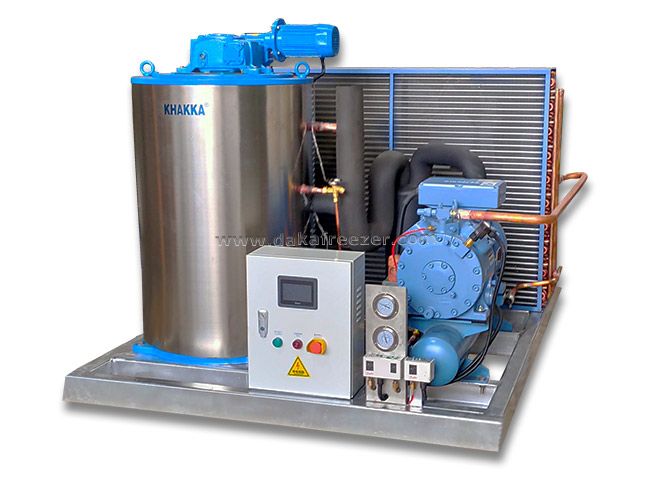

Flake Ice Machine 3T/24H

KHAKKA  industry flake ice machines are mainly used in aquatic processing, chemical pigments, biological pharmacy

and scientific experiments etc. Ice production from 3t/d to 15t/d which can meet the industrial ice demand.

Advantages of the flake ice machine:

1. The ice machine has high ice efficiency and small loss of cooling capacity.

2. Good quality of the flake ice and is dry and not bonded.

3. The flake ice produced by the flake ice machine is rich in variety, simple in structure

4. PLC programmable controller of the flake ice machine, with stable performance, random control

5. The flake ice machine is easy to operate, high standard of hygiene

6.The flake ice machine with the perfect fault protection device.

Technical Parameters

ModelDFI-3T
Capacity3000kg /24h
Necessory cooling capacity18.5kW
Compressor Cooling capacity22KW
Evaporating temp.-20℃
Condensing temp.40℃
  Standard water temperature20℃
Power install13KW
Compressor15HP  11KW
Reduction gear0.18 KW
Cooling pump1.1KW
Power supply380V/50Hz/3P
Water pressure0.1Mpa-0.5Mpa
RefrigerantR404a
Ice temperature-5℃
Water pipe1/2’
Net weight600kg
Machine size1700*1200*1200mm
Ice bin Dimension(mm)1700*2000*1500mm

KHAKKA medium-size industry flake ice machine (ice production 3T/4T/5T/8T/10T/15T/24H)

1.Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

2. Thickness of the flake ice: 1.5mm-2.2mm,it can be adjustable.

3. The above parameters will be changed subject to the technical invotation without further notice.
