Flake Ice Machine 25T Per Day

  1. Flake Ice Machine 25 Ton Per Day

  2. Fresh Water /Salt Water

  3. Air Cooling/Water Cooling

  4. Flake Ice Thickness:  1.5-2.2mm

  5. Refrigerant:  R22/R404A

  6. With PLC Controller

Product Details:

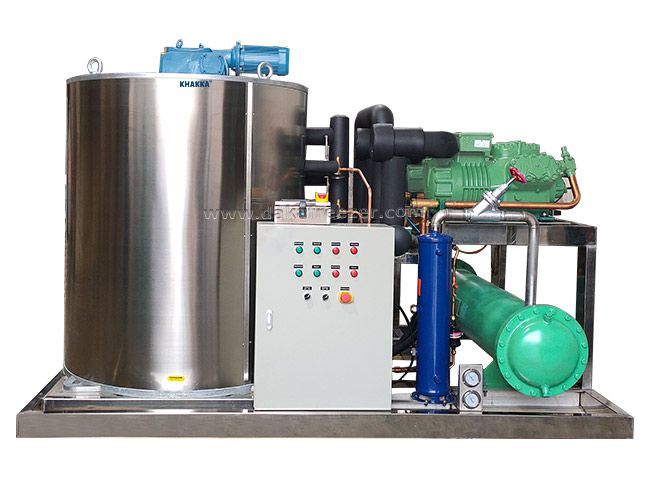

Flake Ice Machine 25T/24H

DAKA FREEZER Large-scale industrial flake ice machine(ice production 20T/25T/30T/40T/50T/24H )

Large-scale industrial flake ice machines are specialized in nuclear power construction, environmental protection engineering and railway construction etc.

The large industrial flake ice machines are equipped with Refcomp screw compressor to ensure sufficient ice production and improve energy efficiency.

Advantages of the flake ice machine:

1. The ice machine has high ice efficiency and small loss of cooling capacity.

2. Good quality of the flake ice and is dry and not bonded.

3. The flake ice produced by the flake ice machine is rich in variety, simple in structure

4. PLC programmable controller of the flake ice machine, with stable performance, random control

5. The flake ice machine is easy to operate, high standard of hygiene

6.The flake  ice machine with the perfect fault protection device.

Technical Parameters

Necessory cooling capacity150KW
Compressor Cooling capacity171kW
Evaporating temp.-20℃
Condensing temp.40℃
Standard water temperature20℃
Power install94KW
Compressor115HP  84KW
Reduction gear1.5KW
Water pump5.5KW
Cooling Tower1.5KW
Power supply380V/50Hz/3P
Water pressure0.1Mpa-0.5Mpa
Ice temperature-5℃
Water pipe3/4”
Net weight2900kg
Machine size3900mm×2100mm×2350mm
Cold storage room3700*4000*2300mm

1.Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

2. Thickness of the flake ice: 1.5mm-2.2mm,it can be adjustable.

3. The above parameters will be changed subject to the technical invotation without further notice.
